HP LaserJet P2035/P2055/P3015/M401/M425/M521/M525 Tray 2/3 Roller Kit RM1-6414/RM1-6303
Renew the paper path.
Worn pickup rollers and separation surfaces can cause delayed pickup, repeated misfeeds, multiple-sheet feeding and tray-specific paper jams. These model-specific feed components restore the grip and separation needed to move one sheet at a time from the cassette into the printer.
RM1-6303
Separation
Optional Feeder
Canon

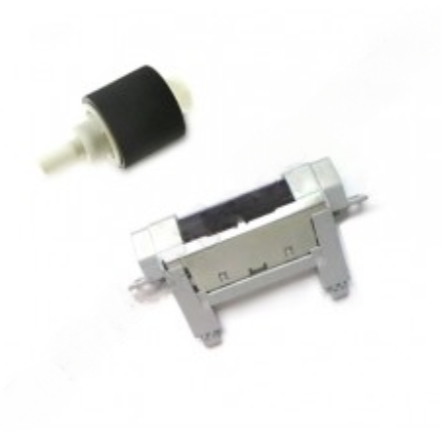

Component identification
| Part Number | Component | Purpose | Typical Position |
|---|---|---|---|
| RM1-6414-000CN RM1-6414-000 |
Paper pickup roller assembly | Grips the upper sheet and begins the paper-feed cycle. | Main cassette, Tray 2 or compatible optional feeder, depending on model. |
| RM1-6303-000CN RM1-6303-000 |
Separation pad and holder assembly | Helps prevent two or more sheets from entering the paper path simultaneously. | Tray 2, Tray 3, Tray 4 or compatible 500-sheet feeder, depending on model. |
Common reasons for replacement
Compatible HP printers
| HP Printer Family | Compatible Models | Applicable Component | Application Note |
|---|---|---|---|
| LaserJet P2035 | P2035, P2035n | RM1-6414 | Internal Tray 2 pickup roller. This series does not support an optional 500-sheet Tray 3. |
| LaserJet P2055 | P2055, P2055d, P2055dn, P2055x | RM1-6414 / model-specific feeder component | Internal cassette or optional CE464A 500-sheet feeder, depending on configuration. |
| LaserJet P3005 | P3005, P3005d, P3005dn, P3005n, P3005x | RM1-6303 | Cassette separation-pad application; Q7817A optional feeder on supported configurations. |
| LaserJet M3027 / M3035 MFP | M3027 MFP, M3027x MFP, M3035 MFP, M3035xs MFP | RM1-6303 | Cassette separation-pad application; Q7817A optional 500-sheet feeder. |
| LaserJet Enterprise P3015 | P3015, P3015d, P3015n, P3015dn, P3015x | RM1-6303 | Compatible cassette/feed-separation application. CE530A is standard with P3015x and optional on supported configurations. |
| LaserJet Pro 400 M401 | M401a, M401d, M401dn, M401dne, M401dw, M401n | RM1-6414 and/or RM1-6303 | Component and tray position depend on whether the repair is for the internal cassette or CF284A feeder. |
| LaserJet Pro 400 MFP M425 | M425dn, M425dw | RM1-6414 and/or RM1-6303 | Internal cassette and CF284A optional-feeder applications vary by component. |
| LaserJet Pro MFP M521 | M521dn, M521dw | RM1-6303 | Compatible separation-pad application for supported cassette and CE530A feeder configurations. |
| LaserJet Enterprise 500 MFP M525 | M525dn, M525f, Flow MFP M525c | RM1-6303 | Compatible separation-pad application for supported cassette and CE530A feeder configurations. |
Compatible Canon printers
| Applicable Part | Canon Family | Compatible Models |
|---|---|---|
| RM1-6414 | imageCLASS D Series | D1120, D1150, D1170, D1180, D1320, D1350, D1370 |
| RM1-6414 | imageCLASS / i-SENSYS MF Series | MF5840dn, MF5850dn, MF5880dn, MF5940dn, MF5950dw, MF5960dn, MF5980dw, MF6160dw, MF6180dw, MF6680dn |
| RM1-6414 | imageCLASS / i-SENSYS LBP | LBP6300dn, LBP6310dn, LBP6650dn, LBP6670dn, LBP6680x |
| RM1-6414 | imageRUNNER / LASER CLASS | imageRUNNER 1133, 1133A, 1133iF, LBP3470, LBP3480; LASER CLASS 650i |
| RM1-6303 | imageRUNNER LBP | LBP3560, LBP3580 |
| RM1-6303 | i-SENSYS / imageCLASS LBP | LBP6700, LBP6710i, LBP6750dn, LBP6780dn, LBP6780x |
| RM1-6303 | imageCLASS / i-SENSYS MF | MF515dw, MF515x |
Canon model names and suffixes may vary by country. Verify the complete model number and installed roller profile before ordering.
Compatible sheet feeders
| Printer Family | Feeder / Tray | Product Number | Service Part Number | Notes |
|---|---|---|---|---|
| HP P2035 / P2035n | No optional 500-sheet feeder | Not applicable | Not applicable | RM1-6414 services the printer’s internal Tray 2 pickup system. |
| HP P2055 Series | 500-Sheet Tray and Feeder Unit | CE464A | — | Standard with certain P2055x configurations; optional on supported variants. |
| HP P3005 / M3027 / M3035 | 500-Sheet Tray 3 and Feeder Unit | Q7817A | — | Included with P3005x; optional on supported P3005 and MFP configurations. |
| HP P3015 Series | 500-Sheet Input Tray | CE530A | CE530-69001 | Standard with P3015x; optional Tray 3 or Tray 4 on supported configurations. |
| HP M401 / M425 Series | 500-Sheet Feeder Tray Assembly | CF284A | CF284A | Installs beneath the printer as optional Tray 3. |
| HP M521 Series | 500-Sheet Optional Tray 3 | CE530A | CE530-69001 | Complete feeder service assembly includes the cassette. |
| HP M525 Series | 500-Sheet Tray 3 / Tray 4 Feeder | CE530A | CF116-67911 | Complete M525 replacement feeder with cassette. |
| Compatible Canon RM1-6414 Platforms | Paper Feeder Unit PF-44 | 3439B001 3439B001AA |
PF-44 | 500-sheet feeder used by compatible LBP, MF and LASER CLASS platforms. |
| Compatible Canon RM1-6303 Platforms | Paper Feeder Unit PF-45 | 4098B001 | PF-45 | 500-sheet feeder used by compatible LBP3580, LBP6780 and MF515 platforms. Regional suffixes may vary. |
Sheet feeders and paper cassettes listed above are compatibility references only and are not included with this roller-kit listing.
What is supplied
The model-specific paper-feed component configuration associated with the selected printer and this listing’s RM1-6414 / RM1-6303 application.
Please select or provide the exact printer model before shipment.
Not included
Printer, complete sheet feeder, paper cassette, feeder frame, motors, gears, sensors, cables, mounting hardware and other paper-path components are not included unless expressly shown or stated in the listing.
Installation overview
Turn the printer off, disconnect the power cord and allow the device to cool before servicing.
Confirm whether the feeding problem occurs from the internal cassette, Tray 2, Tray 3, Tray 4 or an optional feeder.
Follow the service procedure for your exact printer. Some optional feeders must be separated from the printer to access their pickup components.
Verify the mounting points, roller orientation and part profile before removing the installed component.
Reassemble the paper path, load clean paper, confirm the tray settings and perform several single-page and multi-page feed tests.
Confirm the printer and the tray.
Similar printers may use different pickup rollers, separation pads or feeder assemblies. Confirm the complete printer model, affected tray and installed feeder product number before purchase. This listing is for the applicable paper-feed service component—not a complete sheet feeder or paper cassette.
