HP LaserJet Managed X57945 X654 X677 Series Main Drive Assembly RM2-3497-000CN
Main Drive Assembly
Precision internal drive assembly for select HP Color LaserJet Enterprise X57945, X654 and X677 printers.
RM2-3497-000CN
Keep the print engine moving.

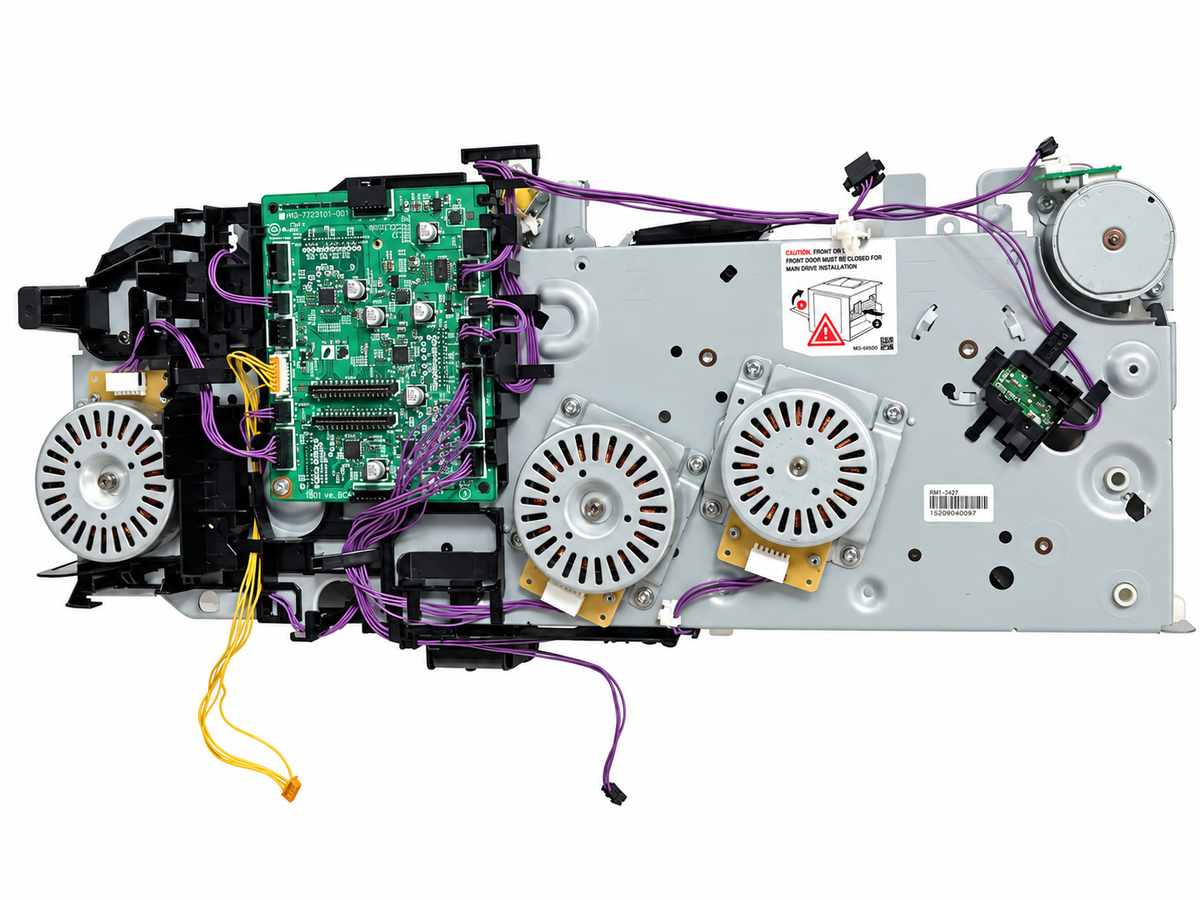

The RM2-3497-000CN main drive assembly is responsible for transferring mechanical power throughout the printer’s image-formation system. It coordinates the movement required by critical internal components to support consistent paper movement, imaging and color output.
Coordinated movement
Supports the synchronized mechanical operation of the printer’s internal imaging system.
Model-specific design
Designed around the internal mounting points and electrical connections of compatible HP printer engines.
Professional repair
Ideal for correcting diagnosed drive, motor, gear-rotation or image-formation movement problems.
Product details
| Brand compatibility | HP |
| Part type | Main Drive Assembly |
| Manufacturer part number | RM2-3497-000CN |
| Abbreviated part number | RM2-3497 |
| Printer technology | Color laser |
| Installation level | Advanced internal repair / technician recommended |
Compatible printers
Compatible with the following fixed-configuration and configurable HP printer families.
| Printer family | Compatible model | Product number |
|---|---|---|
| X57945 | X57945dn | 6QP98A |
| X57945 | Flow MFP X57945z | 6QP99A |
| X57945 | Flow MFP X57945zs | 76H07A |
| X654 | X654dn | 6QQ00A |
| X654 | X65455dn | 49L02A |
| X654 | X65465dn | 49L04A |
| X677 | MFP X677dn | 6QQ01A |
| X677 | MFP X677s | 76H08A |
| X677 | Flow MFP X677z | 76H09A |
| X677 | Flow MFP X677zs | 6QQ02A |
| X677 | Flow MFP X677z+ | 6QQ03A |
| X67755 | MFP X67755dn | 49K86A |
| X67755 | Flow MFP X67755zs | 49K87A |
| X67755 | Flow MFP X67755z+ | 49K88A |
| X67765 | MFP X67765dn | 49K90A |
| X67765 | Flow MFP X67765zs | 49K91A |
| X67765 | Flow MFP X67765z+ | 49K92A |
Also compatible with qualifying custom-configured X579, X654 and X677 models. Serial-number or original-part verification is recommended for configurable units.
Important fitment information
RM2-3497-000CN should not be confused with the visually similar RM2-3504 or RM2-3506 assemblies. It is not intended for the standard 5700, 5800, X557, X58045, 6700, 6701, 6800 or 6801 configurations unless a serial-number-specific HP parts lookup explicitly identifies RM2-3497.
Common service applications
- Diagnosed main-drive assembly failure
- Abnormal mechanical or gear noise
- Motor rotation or startup errors
- Drum or developer movement errors
- Intermittent image-formation drive issues
- Physical damage to the existing assembly
Before ordering
- Confirm the printer’s complete model number
- Match RM2-3497-000CN to the original assembly
- Compare connectors and mounting locations
- Review all listing photographs
- Use the printer serial number for configurable models
Professional installation recommended
This is an advanced internal printer component. Installation may require substantial printer disassembly, cable routing and careful transfer of electrical connections. The printer should be powered off and unplugged before service, and appropriate electrostatic-discharge precautions should be followed. Installation by an experienced printer technician is strongly recommended.
RM2-3497-000CN
Product appearance and minor manufacturing details may vary by production revision. Compatibility should be determined by the complete part number and printer model—not appearance alone.
