Brother D01VVE001 120V Fuser Assembly for HL-L94 and MFC-L96 Series

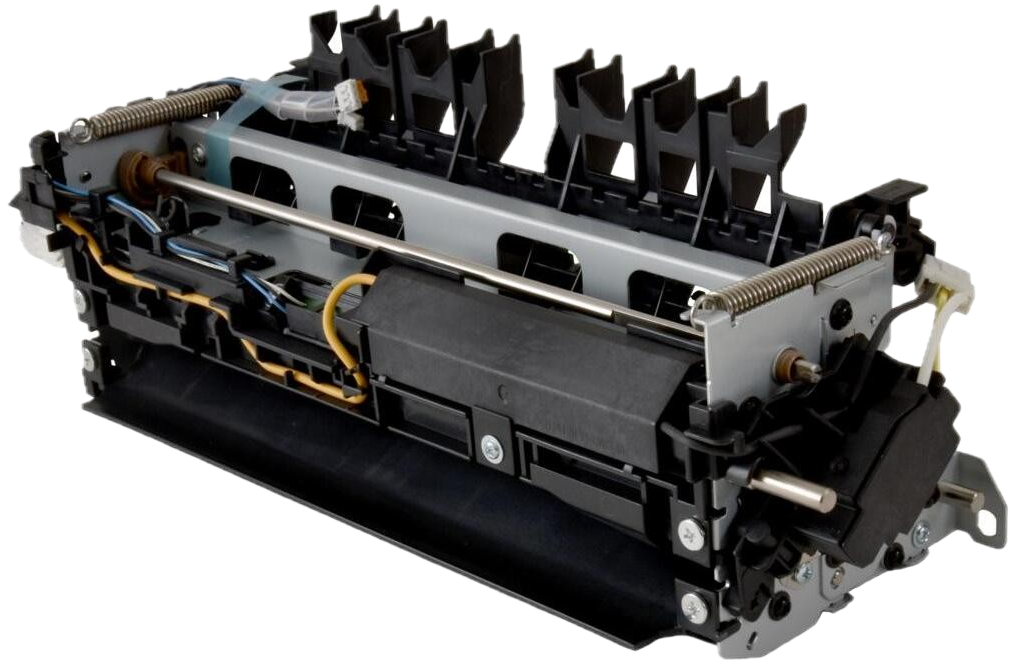

Brother D01VVE001 Fuser Assembly

Part Number: D01VVE001

Maintain dependable print performance with the Brother D01VVE001 fuser assembly. Designed for select Brother HL-L94 and MFC-L96 Series color laser printers, this 120-volt fuser uses controlled heat and pressure to permanently bond toner to each printed page.

Reliable Fusing Performance

The fuser is responsible for the final stage of the laser-printing process. As each sheet passes through the assembly, carefully regulated heat and pressure melt the toner particles and bond them to the media. A properly functioning fuser helps produce clean, professional pages with strong toner adhesion and consistent image quality.

Product Specifications

Compatible Brother Printers

Common Signs of Fuser Wear

• Toner rubs or flakes away from printed pages
• Repeated marks, ghosting, or image defects
• Wrinkled or creased paper near the printer’s exit
• Frequent paper jams in the fusing or exit area
• Fuser-related messages displayed by the printer

These symptoms can have more than one cause. Proper printer diagnosis is recommended before replacing internal components.

Compatibility & Voltage Notice

This is the 120V version of the fuser assembly. It is primarily intended for printers configured for North American electrical systems.

Please verify the printer model, existing fuser part number, voltage, and regional configuration before ordering. A visually similar 230V fuser is not interchangeable with this 120V assembly.

Installation note: Fusers can remain hot after printer operation. Power off and unplug the printer, allow sufficient cooling time, and follow the device service instructions. Professional installation is recommended when appropriate.
