HP & Cannon M501 M506 M507 M527 M528 Pickup Roller and Separation Pad Kit F2A68-67914
Tray 1 paper-feed maintenance

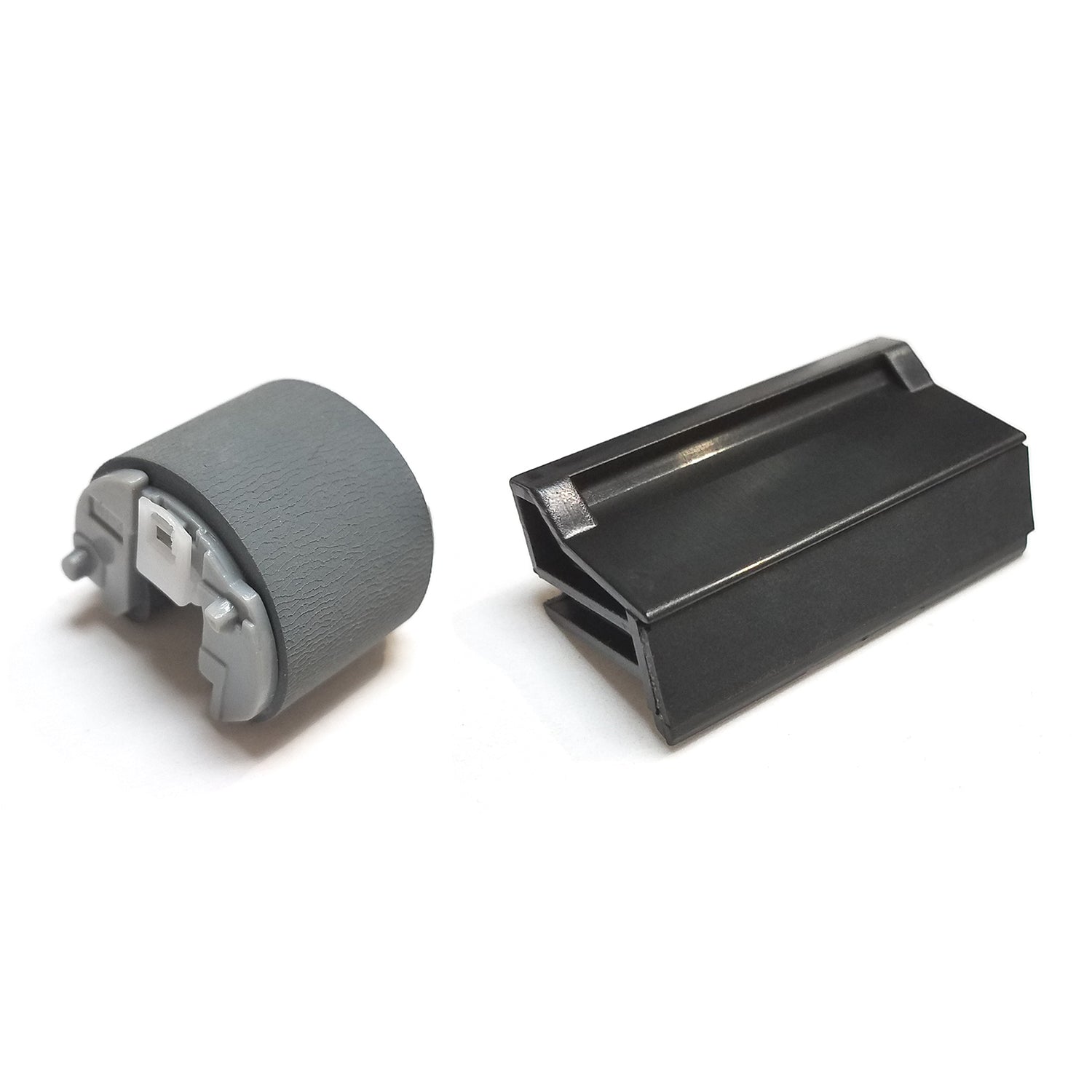

Pickup Roller &
Separation Pad Kit
F2A68-67914
Refresh worn paper-feed surfaces in compatible HP LaserJet and Canon printers. Designed for the multipurpose tray that feeds paper into the print engine.
Check the exact model and feed location before ordering. This kit services Tray 1 / the multipurpose tray. Cassette trays and the automatic document feeder use their own feed parts. Match your printer to the model list below and confirm the roller and pad references.
Tray 1
Multipurpose paper feed
1 roller
Paper pickup component
1 pad
Paper separation component
HP + Canon
See exact compatible models
Restore paper pickup.
A worn pickup roller can slip against the paper and cause missed feeds. Replacing the roller renews the contact surface that draws a sheet from the multipurpose tray.
Support single-sheet feeding.
The separation pad helps hold back additional sheets as the roller picks up paper. Replacing worn feed surfaces together can address multiple-sheet feeding caused by roller or pad wear.
Part specifications
| Specification | Details |
|---|---|
| Kit reference | F2A68-67914 |
| Application | Tray 1 / multipurpose manual-feed paper pickup and separation |
| Pickup roller | RL2-0656-000CN (HP) / RL2-0656-000 (Canon) |
| Separation pad | RL2-0657-000CN (HP) / RL2-0657-000 (Canon) |
| Service purpose | Replace worn pickup and separation surfaces that contribute to missed pickup, multiple-sheet feeding, or paper-feed jams. |
| Spring | Maintain the correct separation-pad spring placement. Spring inclusion depends on the supplied kit configuration. |
Compatible printers
Exact model suffixes matter. HP models below use this service kit or the matching pickup roller and separation pad. Canon compatibility is based on matching both component part numbers; F2A68-67914 is an HP kit reference.
HP LaserJet Pro
| Model family | Compatible models |
|---|---|
| LaserJet Pro M304 / M305 | M304a, M305d, M305dn |
| LaserJet Pro M402 / M403 | M402d, M402n, M402dn, M402dne, M402dw, M402m, M403d, M403n, M403dn, M403dw |
| LaserJet Pro M404 / M405 | M404d, M404n, M404dn, M404dw, M405d, M405n, M405dn, M405dw |
| LaserJet Pro M501 | M501n, M501dn |
| LaserJet Pro MFP M329 | M329dn, M329dw |
| LaserJet Pro MFP M426 / M427 | M426dw, M426fdn, M426fdw, M427dw, M427fdn, M427fdw |
| LaserJet Pro MFP M428 / M429 | M428dw, M428fdn, M428fdw, M429dw, M429fdn, M429fdw |
HP LaserJet Enterprise & Enterprise Flow
| Model family | Compatible models |
|---|---|
| LaserJet Enterprise M406 / M407 | M406dn, M407dn |
| LaserJet Enterprise M506 | M506n, M506dn, M506dh, M506x |
| LaserJet Enterprise M507 | M507n, M507dn, M507dng, M507x |
| LaserJet Enterprise MFP M430 / M431 | M430f, M431f |
| LaserJet Enterprise MFP M527 | M527dn, M527f |
| LaserJet Enterprise Flow MFP M527 | M527c, M527z |
| LaserJet Enterprise MFP M528 | M528dn, M528f |
| LaserJet Enterprise Flow MFP M528 | M528c, M528z |
HP LaserJet Managed & Managed Flow
| Model family | Compatible models |
|---|---|
| LaserJet Managed M506 | M506dnm, M506xm |
| LaserJet Managed MFP M527 | M527dnm |
| LaserJet Managed Flow MFP M527 | M527cm |
| LaserJet Managed E50045 / E50145 | E50045dw, E50145dn |
| LaserJet Managed MFP E42540 | E42540f |
| LaserJet Managed MFP E52545 / E52645 | E52545dn, E52645dn |
| LaserJet Managed Flow MFP E52545 / E52645 | E52545c, E52645c |
DEX models in HP's service-parts catalog
| Model family | Compatible models |
|---|---|
| DEX D50145 | D50145dn |
| DEX MFP D42540 | D42540f |
| DEX MFP D52645 | D52645dn |
Canon imageCLASS
| Model family | Compatible models |
|---|---|
| imageCLASS D1600 | D1620, D1650 |
| imageCLASS LBP210 | LBP214dw, LBP215dw, LBP215x |
| imageCLASS LBP312 | LBP312dn, LBP312x |
| imageCLASS MF420 | MF424dw, MF426dw, MF429dw, MF429x |
| imageCLASS MF460 | MF461dw, MF465dw, MF469x |
| imageCLASS MF520 | MF525dw, MF525x |
Canon i-SENSYS
| Model family | Compatible models |
|---|---|
| i-SENSYS LBP230 | LBP233dw, LBP236dw |
| i-SENSYS MF420 | MF421dw, MF426dw, MF428x, MF429x |
| i-SENSYS MF440 | MF443dw, MF445dw, MF446x, MF449x |
Canon imageCLASS X
| Model family | Compatible models |
|---|---|
| imageCLASS X LBP1440 | LBP1440 |
| imageCLASS X MF1643 II | MF1643i II, MF1643iF II |
Canon imageRUNNER
| Model family | Compatible models |
|---|---|
| imageRUNNER 1643P | 1643P |
| imageRUNNER 1643 | 1643i, 1643iF |
| imageRUNNER 1643 II | 1643i II, 1643iF II |
Installation notes
Follow the service procedure for your exact printer. Turn the printer off and disconnect power before replacement. Handle the replacement roller and pad by their holders to keep the paper-contact surfaces clean.
Check the separation-pad spring and seat each component securely. After reassembly, print a test page from the multipurpose tray. Feed problems caused by damaged guides, unsuitable paper, or other worn parts may require additional service.
F2A68-67914. The correct feed location matters.
Select this pickup roller and separation pad kit for the listed compatible models and their Tray 1 / multipurpose feed path. Confirm the printer model, part references, and supplied kit contents before purchase.
HP, LaserJet, Canon, imageCLASS, i-SENSYS, and imageRUNNER are trademarks of their respective owners. Model names are used to identify compatibility. Regional naming and service-part revisions may vary.
