HP LaserJet M274 M277 M377 M426 M427 M477 CIS Scanner Head Only B3Q10-40034
Replace the failed component, not the entire scanner.

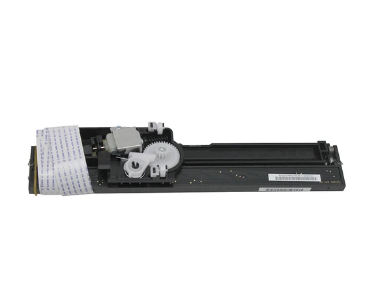

The B3Q10-40034 Contact Image Sensor travels beneath the scanner glass and captures the document image one line at a time. It may be used to repair compatible machines experiencing scanner-head failure when the existing glass, housing and drive components remain serviceable.
Restore scan-image capture.
Designed to replace the moving flatbed CIS scanner head responsible for illuminating and capturing documents placed on the scanner glass.
Keep the original enclosure.
This component installs inside the machine’s existing scanner enclosure. The original housing, glass, belt, motor, cabling and surrounding hardware must be retained unless included separately.
Verify before disassembly.
Compare the original part marking, connector arrangement and physical configuration with the listing photographs before ordering. Similar printer families may use a different complete scanner assembly.
Service-level installation.
Scanner disassembly requires careful handling of the sensor, flexible cables, drive belt and calibration surfaces. Professional installation is recommended.
Compatible HP LaserJet Pro MFPs
Compatibility is limited to the scanner-head application. Complete scanner housings and document feeders differ between printer models.
| Printer Family | Compatible Models | Product Category |
|---|---|---|
| HP Color LaserJet Pro MFP M274 | M274n | Color LaserJet Pro |
| HP Color LaserJet Pro MFP M277 | M277n, M277dw, M277c6 | Color LaserJet Pro |
| HP Color LaserJet Pro MFP M377 | M377dw | Color LaserJet Pro |
| HP Color LaserJet Pro MFP M477 | M477fnw, M477fdn, M477fdw | Color LaserJet Pro |
| HP LaserJet Pro MFP M426 | M426dw, M426fdn, M426fdw | Monochrome LaserJet Pro |
| HP LaserJet Pro MFP M427 | M427dw, M427fdn, M427fdw | Monochrome LaserJet Pro |
Compatibility boundary
No HP Enterprise, HP Managed or Canon models have been manufacturer-verified for B3Q10-40034. These categories are therefore not advertised as compatible with this listing.
Do not assume compatibility with HP M280/M281/M283, M428/M429/M430, M479, Enterprise MFP, Managed MFP or Canon imageCLASS/i-SENSYS models without comparing the original scanner head, connector layout and identifying number. Canon LBP models and HP M252/M452 models are print-only devices and do not contain a flatbed document scanner.
Complete Scanner Assembly Reference
| Printer Family | HP Complete Assembly Number | Important Difference |
|---|---|---|
| M426/M427 Simplex ADF | C5F98-60109 | Complete housing, scanner and document-feeder assembly |
| M426/M427 Duplex ADF | C5F98-60110 | Complete housing, scanner and duplex document-feeder assembly |
| M377 | CF377-60124 | Complete integrated scanner assembly |
| M477 | CF377-60104 | Complete integrated scanner assembly |
These complete-assembly numbers are supplied for identification only. This listing is for the internal B3Q10-40034 scanner head and does not include any complete scanner assembly listed above.
Product Details
| Primary Part Number | B3Q10-40034 |
| Product Type | Contact Image Sensor document-scanner head |
| Scanner Position | Moving flatbed scanner component beneath the scanner glass |
| Quantity | One scanner head |
| Housing Included | No |
| ADF Included | No |
| Installation Level | Service-level installation recommended |
Included
- One B3Q10-40034 CIS scanner head
- Attached components shown in the listing photographs
Not included
- Scanner housing or scanner glass
- Automatic document feeder or scanner lid
- Hinges, motor, drive belt or exterior covers
- Complete integrated scanner assembly
- Printer or installation service
Installation considerations
- Turn off the printer and disconnect its power cord before beginning service.
- Confirm the original scanner-head marking and connector configuration before removing the scanner assembly.
- Avoid touching or scratching the sensor window, scanner glass or calibration strip.
- Transfer the scanner head into the original housing without twisting the flexible cable or disturbing the drive belt.
- After reassembly, test flatbed scanning and copying across the complete width of the scanner glass.
B3Q10-40034 · CIS Scanner Head Only
This listing does not include the scanner housing, scanner glass, document feeder or complete scanner assembly. Compare the number and connector arrangement on your original scanner head before purchase.
Specifications and compatibility information are provided for identification purposes. Printer revisions and regional configurations may differ. HP, LaserJet and Canon are trademarks of their respective owners.
