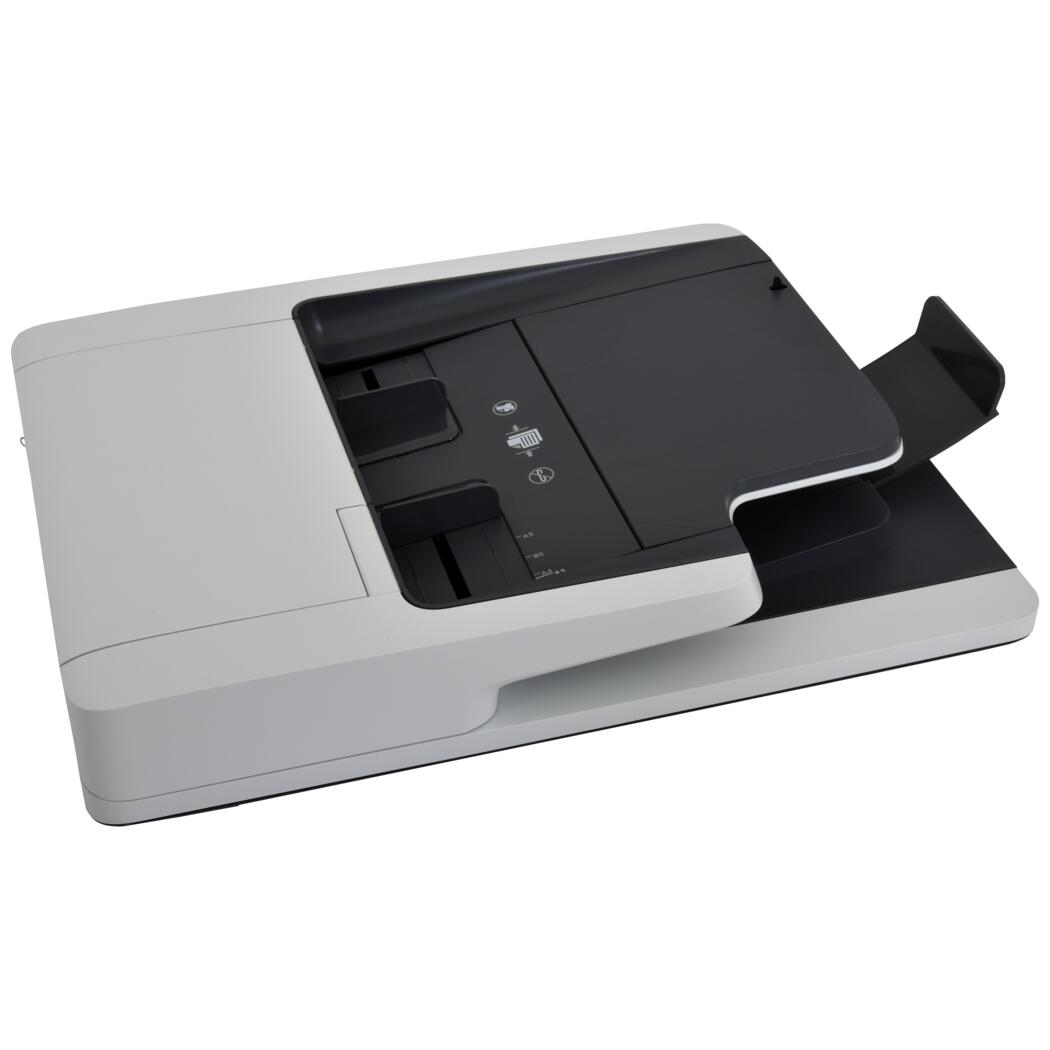

HP M527c/M527z/M528c/M528c/M577c/M577z/M578c/M578z Flow ADF Assembly – B5L47-67902 / B5L47-67905 / B5L47-67907 / B5L47-67909
Select Remanufactured or New OEM from the listing options before adding to cart. This replacement ADF is intended for the specific HP Flow configurations listed below. Match your printer’s full model, product number, and required service-part revision before ordering.
HP Flow Automatic Document Feeder
Keep every page moving.
Replacement Flow ADF assembly for HP M527c / M527z / M577c / M577z, with additional M528, M578, Managed, and PageWide Flow applications listed below.
Restore the document-feeding side of your scanning and copying workflow with the correct assembly for your HP Flow device.
Choose the condition that fits.
This is a variant listing. Your selected option determines the condition of the assembly you purchase.
Remanufactured
A previously used assembly offered in remanufactured condition. It is not factory-new, and cosmetic signs of prior use may be present. Choose this option when purchasing a remanufactured replacement for your compatible Flow printer.
New OEM
A new, unused original HP replacement assembly. Choose this option when you require a new OEM part. Packaging and any additional kit contents should be confirmed from the selected variant’s details.
Built for your existing Flow workflow.
Feed a stack. Move on.
The automatic document feeder moves multipage originals through the scanning path for supported scan and copy jobs. A correctly matched replacement can address faults traced to the ADF assembly, including mechanical damage or document-feeding failures.
Preserve the right configuration.
These Flow devices support single-pass duplex scanning and HP EveryPage document-feeding features. Replacing the ADF maintains the intended hardware configuration; it does not add Flow functionality, OCR software, or a keyboard to a standard model.
For the M578 family, this listing is for M578c (7ZU87A) and M578z (7ZU88A). It is not intended for M578dn (7ZU85A) or M578f (7ZU86A). Enterprise and Managed branding alone does not identify a Flow device, and duplex scanning alone does not establish compatibility.
The following tables identify the relevant Flow applications. The four listed part numbers represent different service versions; the tables do not certify that every historical revision is interchangeable on every model. Confirm the appropriate replacement revision using the printer product number, serial number, and installed assembly label.
Compatible HP Enterprise Flow models.
LaserJet and Color LaserJet Flow configurations, subject to the service-revision check above.
| Printer model | HP product number |
|---|---|
| HP LaserJet Enterprise Flow MFP M527c | F2A81A |
| HP LaserJet Enterprise Flow MFP M527z | F2A78A |
| HP LaserJet Enterprise Flow MFP M528c | 1PV66A |
| HP LaserJet Enterprise Flow MFP M528z | 1PV67A |
| HP Color LaserJet Enterprise Flow MFP M577c | B5L54A |
| HP Color LaserJet Enterprise Flow MFP M577z | B5L48A |
| HP Color LaserJet Enterprise Flow MFP M578c | 7ZU87A |
| HP Color LaserJet Enterprise Flow MFP M578z | 7ZU88A |
Compatible HP Managed Flow models.
Includes the Managed M527cm and M577cm, plus the E52545c, E52645c, and E57540c configurations.
| Printer model | HP product number |
|---|---|
| HP LaserJet Managed Flow MFP M527cm | F2A80A |
| HP LaserJet Managed Flow MFP E52545c | 3GY20A |
| HP LaserJet Managed Flow MFP E52645c | 1PS55A |
| HP Color LaserJet Managed Flow MFP M577cm | B5L50A |
| HP Color LaserJet Managed Flow MFP E57540c | 3GY26A |
Additional PageWide Flow applications.
These PageWide Flow devices also use the related Flow ADF service family. Confirm the correct service revision for the particular device before purchase.
| Printer model | HP product number |
|---|---|
| HP PageWide Enterprise Color Flow MFP 586z | G1W41A |
| HP PageWide Managed Color Flow MFP E58650z | L3U43A |
Not intended for these related models.
The following Enterprise and Managed configurations use the standard, non-Flow ADF arrangement and are excluded from this Flow assembly listing.
| Printer model | HP product number |
|---|---|
| HP LaserJet Enterprise MFP M527dn | F2A76A |
| HP LaserJet Enterprise MFP M527f | F2A77A |
| HP LaserJet Enterprise MFP M528dn | 1PV64A |
| HP LaserJet Enterprise MFP M528f | 1PV65A |
| HP Color LaserJet Enterprise MFP M577dn | B5L46A |
| HP Color LaserJet Enterprise MFP M577f | B5L47A |
| HP Color LaserJet Enterprise MFP M578dn | 7ZU85A |
| HP Color LaserJet Enterprise MFP M578f | 7ZU86A |
| HP LaserJet Managed MFP M527dnm | F2A79A |
| HP LaserJet Managed MFP E52545dn | 3GY19A |
| HP LaserJet Managed MFP E52645dn | 1PS54A |
| HP Color LaserJet Managed MFP M577dnm | B5L49A |
| HP Color LaserJet Managed MFP E57540dn | 3GY25A |
| HP PageWide Enterprise Color MFP 586dn | G1W39A |
| HP PageWide Enterprise Color MFP 586f | G1W40A |
| HP PageWide Managed Color MFP E58650dn | L3U42A |
B5L47-67901, B5L47-67904, B5L47-67906, and B5L47-67908 identify non-Flow ADF service versions. Do not substitute the Flow assembly solely because the housing looks similar. This listing is not a conversion kit for a non-Flow printer.
Part details. Clearly defined.
| Product type | Replacement Flow automatic document feeder (ADF) assembly |
|---|---|
| Listed part references | B5L47-67902 / B5L47-67905 / B5L47-67907 / B5L47-67909 |
| Part-reference meaning | Flow ADF service versions. Verify the correct replacement revision for your device; four references do not mean four assemblies are included. |
| Condition choices | Remanufactured or New OEM—select the required listing variant |
| Document handling* | Up to 100 sheets; single-pass, two-sided scanning on the compatible host device |
| Application | Replacement of an existing, correctly matched Flow ADF; not a standard-to-Flow upgrade |
| Quantity | One ADF assembly in the selected condition |
*Capacity depends on the originals used. Scan speeds, media limits, software features, and available destinations are determined by the host printer and its configuration. Follow the printer’s document-handling specifications.
Know what you’re replacing.
Included
One Flow ADF assembly in the Remanufactured or New OEM condition selected at checkout. Refer to the selected variant for the supplied service-part number and any additional kit contents.
Assembly scope
This is an ADF replacement part, not a complete printer or complete flatbed scanner assembly. A separate scanner control board, control panel, keyboard, and installation service are not part of the ADF assembly description.
Before installation.
Confirm that the fault has been diagnosed to the ADF. Feeding and scanning problems can also involve rollers, cables, the flatbed scanner, or the scanner control board; replacing the whole ADF will not resolve every scanner error.
Have a qualified technician follow the HP service procedure for your exact model. Power down and disconnect the printer before service, protect the cable connections, complete any specified setup or calibration, and verify both one-sided and two-sided document feeding after installation.
The right ADF starts with the right match.
HP M527c / M527z / M577c / M577z Flow ADF Assembly, with the specific M528, M578, Managed, and PageWide Flow applications listed above.
B5L47-67902 · B5L47-67905 · B5L47-67907 · B5L47-67909
Match your full model and product number, verify the required service revision, and select Remanufactured or New OEM before ordering. Intended for the listed Flow configurations only.
HP, LaserJet, PageWide, and EveryPage are trademarks of HP. Printer product numbers identify the host devices and are separate from ADF service-part numbers. Regional or remanufactured printer SKU variations require confirmation against the device label.
