HP DesignJet Carriage PCA

Printhead carriage control board assembly engineered for select HP DesignJet Z6 Pro and Z9+ Pro 64-inch professional large-format printers.

The electronics at the heart of the carriage.

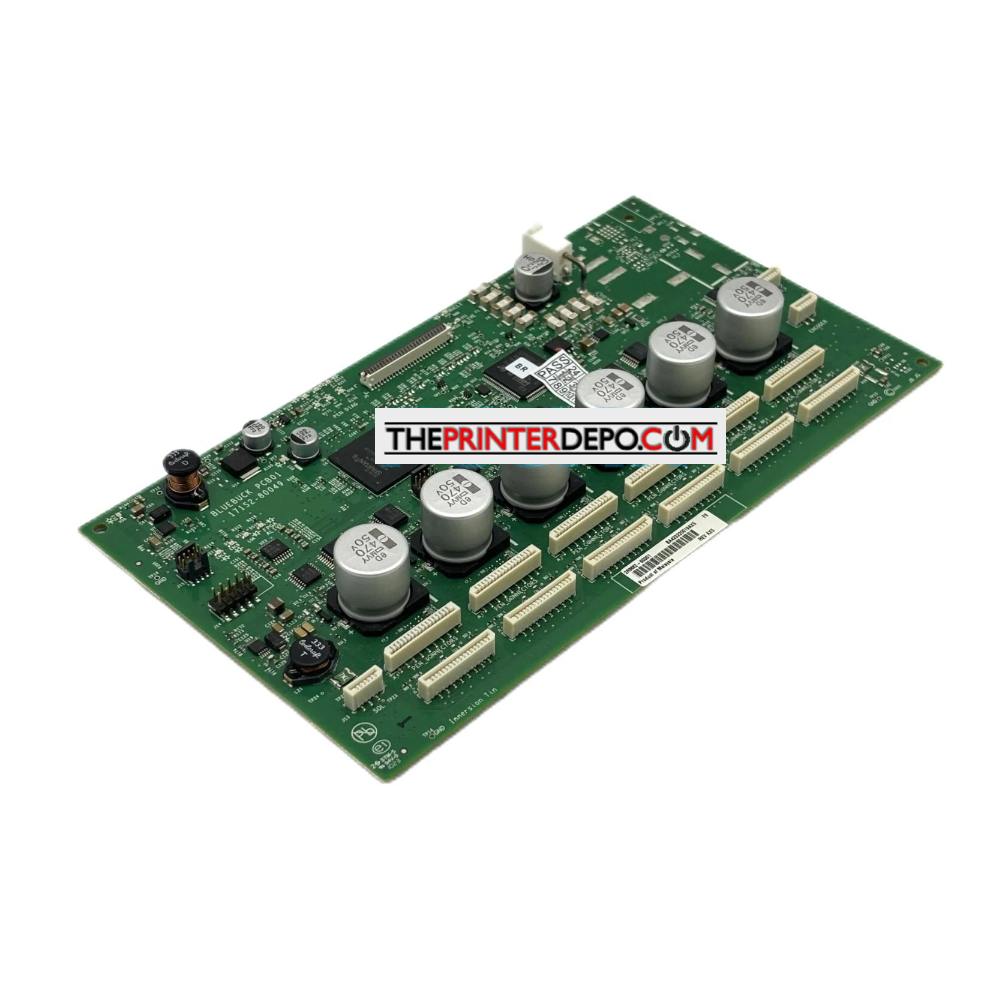

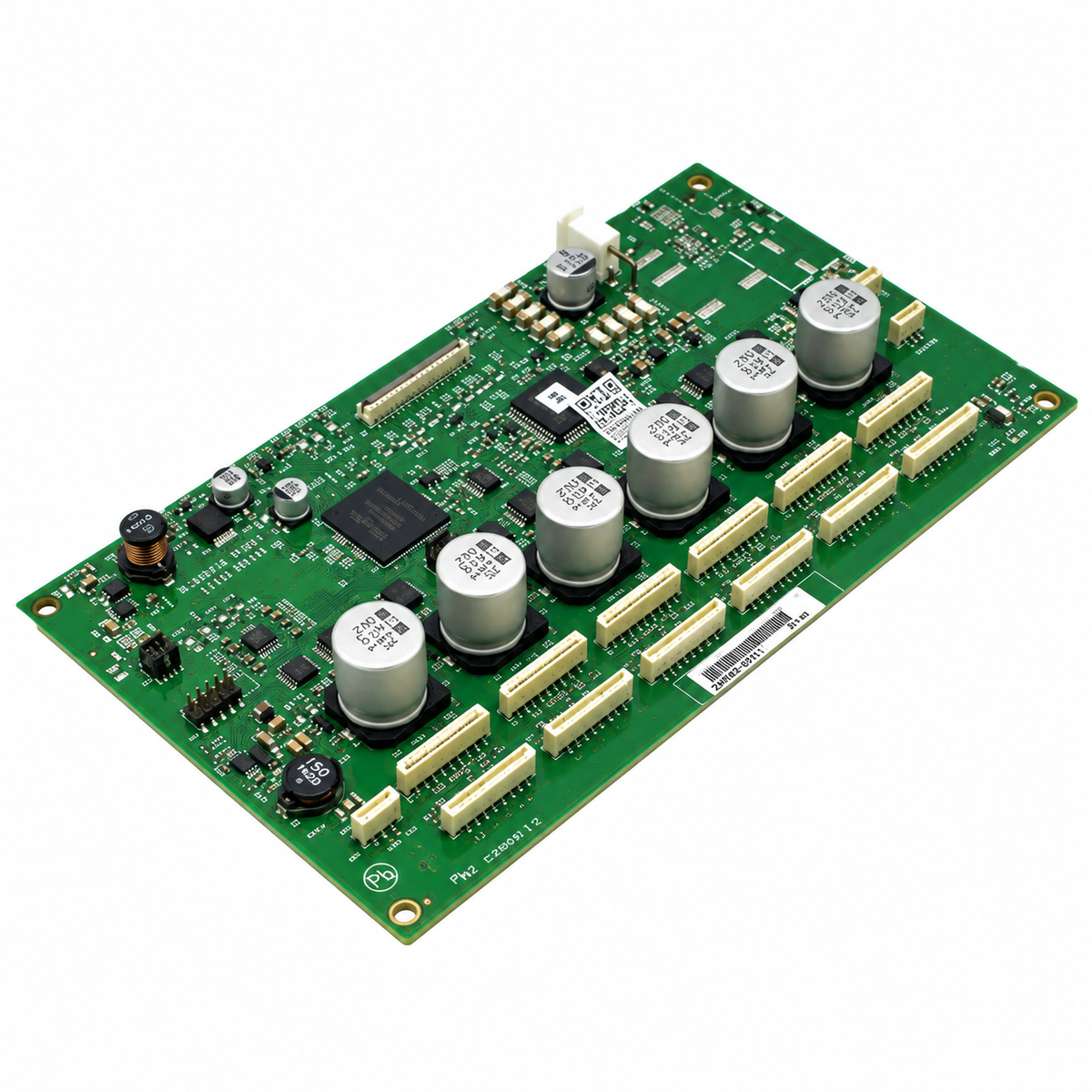

The HP 2RM82-67011 Carriage PCA is an internal printed circuit board mounted within the printhead carriage system of compatible HP DesignJet Z6 Pro and Z9+ Pro printers.

This board forms an important part of the electrical interface between the printer and its printhead carriage, helping manage printhead communication, power distribution, and carriage-related electronic functions during operation.

Designed for HP DesignJet Pro.

Compatibility should always be confirmed by printer model and original part number prior to installation.

Small board. Critical responsibility.

When replacement may be necessary.

HP service procedures identify the Carriage PCA as a potential replacement component when troubleshooting certain persistent printhead and carriage-electronics faults, including:

• Carriage PCA voltage faults
• Printhead voltage-related errors
• Vpp voltage out-of-range conditions
• Vdd voltage out-of-range conditions
• Carriage PCA communication failures
• Microprocessor or FPGA communication errors
• Persistent printhead electrical faults after other troubleshooting steps have been completed

Error codes can have multiple causes. Professional diagnosis and completion of the appropriate HP service diagnostics are recommended prior to replacing electronic components.

Verify the number. Match the part.

The primary service part number for this assembly is:

Do not confuse this component with the complete carriage assembly, carriage PCA cover, carriage flex cables, trailing cables, or other nearby components within the carriage system.

Genuine component. Carefully sourced.

This item is supplied as a New Pull component, meaning it has been carefully removed from a new or exceptionally low-use donor machine for individual resale. Minor cosmetic evidence from removal, handling, or installation may be present and does not affect intended functionality.

Specialized parts require a little extra time.

Please allow approximately 10–15 business days for this specialized component to be prepared and released for shipment. This processing window is fixed and cannot be shortened or expedited, so please plan service schedules accordingly.

Professional installation recommended.

The 2RM82-67011 is an internal electronic service component and requires disassembly of portions of the printhead carriage system for replacement.

Installation should be performed by an experienced large-format printer technician familiar with HP DesignJet service procedures, electrostatic-discharge precautions, cable routing, and carriage-system diagnostics.

Precision where it matters most.

Restore the carriage electronics of compatible HP DesignJet Z6 Pro and Z9+ Pro systems with the correct 2RM82-67011 Carriage PCA assembly.
