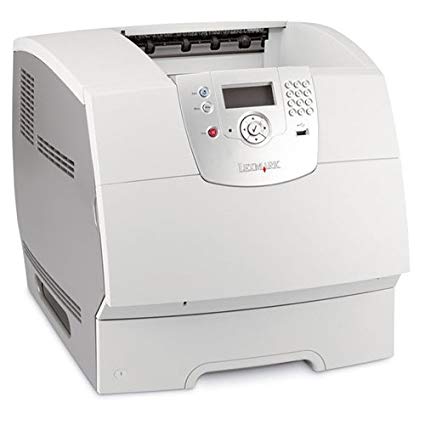

Lexmark Laser T642N (Remanufactured), 20G0250 – The Printer Depot
Lexmark Laser T642N (Remanufactured), 20G0250

Lexmark Laser T642N (Remanufactured), 20G0250

Regular price
Sold out
Sale price
$399.99

Please email sales@theprinterdepo.com before placing order as this model is usually in short supply. However, we often have the replacement models in stock.

T650N (30G0100)

T654N (30G0323)

MS811N (40G0200)

General Specs

Part # 20G0250
Print Technology
  • Monochrome Laser
Display
  • 4-line 160 x 64 pixel All Points Addressable (APA) backlit gray-scale display
Media Sizes Supported
  • 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, Statement, Executive, Universal, DL Envelope, Folio, 10 Envelope
Standard Ports
  • Two Internal Card Slots, USB Compatible with USB 2.0 Specification (Type B), USB Direct interface on Operator Panel, Centronics IEEE 1284 Bidirectional Parallel, Ethernet 10/100BaseTX (RJ-45)
Size (in. - H x W x D)
  • 16 x 17.2 x 20.6 in.
Weight (lb.)
  • 51 lb.
Packaged Size (in. - H x W x D)
  • 21 x 20.38 x 23.25 in.
Packaged Weight (lb.)
  • 56.84 lb.

Printing

Print Speed
  • 45 ppm
Time to First Page
  • As fast as:
  • Black: 8.5 seconds
Print Resolution
  • Black: 1200 x 1200 dpi, 2400 Image Quality, 600 x 600 dpi, 1200 Image Quality
Duplex (2-sided) Printing
  • Duplex Unit Available
Printable Area
  • 0.167 inches of the top, bottom, right and left edges (within)

Paper Handling

Media Types Supported
  • Vinyl Labels, Integrated Labels, Paper Labels, Card Stock, Plain Paper, Polyester Labels, Dual Web Labels, Transparencies, Envelopes, Refer to the Card Stock & Label Guide.
Finishing Option
  • Yes
Number of Paper Inputs
  • Standard: 2
  • Maximum: 6
Paper Input Capacity
  • Standard: 600 pages 20 lb or 75 gsm bond
  • Maximum: 4100 pages 20 lb or 75 gsm bond
  • 600 pages 20 lb or 75 gsm bond
Paper Output Capacity
  • Up to:
  • Standard: 500 pages 20 lb or 75 gsm bond
  • Maximum: 3000 pages 20 lb or 75 gsm bond
Paper Weight Range Supported
  • 16 - 47 lb. (Standard Tray (lb.))
Paper Handling Standard
  • 100-Sheet Multipurpose Feeder, 500-Sheet Output Bin, 500-Sheet Input Tray
Paper Handling Optional
  • 1,850-Sheet High-Capacity Output Stacker, 500-Sheet Duplex Unit, 5-Bin Mailbox, 250-Sheet Drawer, 650-Sheet Output Expander, 200-Sheet Universally Adjustable Tray with Drawer, 2,000-Sheet High-Capacity Feeder, Envelope Feeder, StapleSmart Finisher, 400-Sheet Universally Adjustable Tray with Drawer, 500-Sheet Drawer
Recommended Monthly Page Volume
  • 3000 - 19000 pages1
Maximum Monthly Duty Cycle
  • Up to:
  • 225000 pages per month2

Cartridges & Imaging

Supplies Yield
  • 6,0003 -page Print Cartridge, 21,0003 -page High Yield Print Cartridge, Ships with 6,0003 -page Return Program Print Cartridge (Not included)

Hardware

Processor
  • 457 MHz
Memory
  • Standard: 128 MB
  • Maximum: 640 MB
Printer Languages
  • Standard:
  • PDF 1.5 emulation, PCL 5e Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), xHTML, PostScript 3 Emulation
Fonts and Symbol Sets
  • 2 PCL bitmap fonts, 158 scalable PostScript fonts, OCR-A, OCR-B scalable PCL 5e fonts, For more information, refer to the Technical Reference., 84 scalable PCL fonts, 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide, 5 PPDS bitmap fonts, 39 scalable PPDS fonts

Connectivity

Network Protocol Support
  • TCP/IP IPv6, IPX/SPX, TCP/IP IPv4, LexLink (DLC), AppleTalk™
Network Printing Methods
  • LPR/LPD, Socket (Raw TCP/IP), Direct IP (Port 9100), HTTP, IPP (Internet Printing Protocol), NDPS/NEPS (Novell Distributed Print Services, Novell Netware Enterprise Print Services), NDS Queue-based Printing, Enhanced IP (Port 9400)
TCP/IP Set of Application Services
  • NTP: Network Time Protocol, TFTP, ping, finger, telnet, DDNS, mDNS, Zero configuration
Network Management Protocols
  • DHCP, APIPA (AutoIP), BOOTP, RARP, IGMP, SLPv1, WINS, SNMPv3, SNMPv1, SNMPv2c, HTTPs (SSL*/TLS), HTTP
Network Security
  • IPSec, SSL4 Enabled Embedded Web Server (HTTPS), SNMPv3, Authenticated and encrypted MarkVision Professional communication, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, TCP/IP port access control
Optional Local Ports
  • Internal 1284-B Bidirectional Parallel, Internal RS-232C serial
Optional Network Ports
  • Internal MarkNet™ N8030 Fiber Fast Ethernet, External MarkNet N7020e Gigabit Ethernet, Internal MarkNet™ N8050 802.11g Wireless, Internal MarkNet™ N8020 Gigabit Ethernet, Coax/Twinax Adapter for SCS, Lexmark N4050e 802.11g Wireless Print Server (Print Only)

Supported Operating Systems

Microsoft Windows Operating Systems Supported
  • Windows 2000, Windows NT (4.00/4.00 Server), Windows 2000 Server running Terminal Services, Windows Vista, Windows XP x64, Windows Server 2003 x64, Windows Server 2003, Windows XP, Windows Server 2003 x64 running Terminal Services, Windows 7, Windows Server 2003 running Terminal Services, Windows Vista x64
Apple Operating Systems Supported
  • Apple Mac OS X, Apple Mac OS 9.2
Linux Operating Systems Supported
  • Red Flag Linux Desktop 5.0, 6.0, Linspire Linux 6.0, Debian GNU/Linux 4.0, Debian GNU/Linux 5.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11, openSUSE 10.2, 10.3, 11.0, 11.1, SUSE Linux Enterprise Server 8.0, 9.0, 10, 11, Red Hat Enterprise Linux WS 3.0, 4.0, 5.0, Linpus Linux Desktop 9.2, 9.3
Citrix MetaFrame
  • Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64, Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 3.0, 4.0, Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5
Novell Operating Systems Supported
  • Novell NetWare 5.x, 6.x with iPrint or Novell Distributed Print Services (NDPS), Novell NetWare 4.2, 5.x and 6.x (NDS), Novell NetWare® 3.2, 4.2 (bindery), Novell® Open Enterprise Server for Netware with NDS, iPrint or Novell Distributed Print Services (NDPS)
UNIX Operating Systems Supported
  • HP-UX 11.00, 11.1, IBM AIX 5.1, 5.2, 5.3, Sun Solaris SPARC 8, 9, 10
Other Operating Systems Supported
  • IBM iSeries or IBM AS/400® Systems with TCP/IP with OS/400® V3R1 or later using OS/400 Host Print Transform, Virtually any platform supporting TCP/IP

Electrical & Operation

ENERGY STAR
  • No
Noise Level
  • Operating:
  • 30 dBA (Idle)
  • 55 dBA (Print)
Average Power
  • 760 watts (Printing)
Average Power in Standby with Power Saver On / Average Power in Standby with Power Saver Off
  • 20 watts
  • 95 watts
Specified Operating Environment
  • Humidity: 8 to 80% Relative Humidity
  • Temperature: 16 to 32°C (60 to 90°F)
  • Altitude: 0 - 3048 Meters (10,000 Feet)
Product Certifications
  • CSA, ICES Class A, BSMI Class A, VCCI Class A, FCC Class B, UL 60950 3rd Edition, IEC 320-1, CE Class A, CB IEC 60950, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, C-tick Class A CCC Class A
ENERGY STAR
  • No
UNSPSC Code
  • 43212105
Country of Origin
  • China (PRC)
