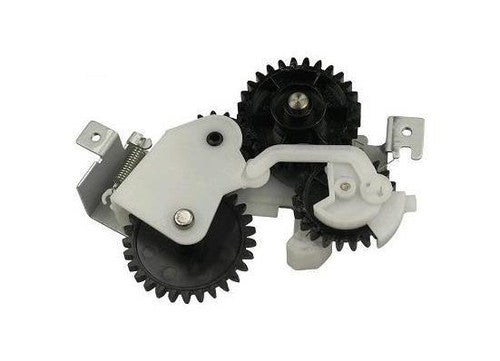

HP LaserJet Enterprise 600 M601/M602/M603 OEM Paper Delivery Drive Assembly RM1-8410

HP LaserJet Enterprise M601-M603 Series Paper Delivery Drive Assembly

For M601, M602 and M603 Series • RM1-8410-000CN

Restore dependable operation of the paper-output drive system in a compatible HP LaserJet Enterprise 600 printer with this genuine HP OEM paper delivery drive assembly. This internal gear-drive assembly helps transfer mechanical power to the paper-delivery system as printed pages travel from the fuser area toward the printer’s output bin.

Product Details

Compatible Printer Models

Please verify your complete printer model and part number before ordering. Compatible models include:

Assembly Function

The paper delivery drive assembly forms part of the printer’s internal output-drive system and helps:

• Transfer mechanical drive to the paper-delivery mechanism
• Operate gears associated with the printer’s output paper path
• Move printed pages away from the fuser area
• Support consistent delivery of completed pages to the output bin

Common Symptoms of a Worn Delivery Drive

A worn, damaged or binding paper delivery drive may contribute to symptoms such as:

• Grinding, clicking or repetitive gear noise near the output area
• Paper stopping after passing through the fuser
• Paper jams or incomplete page delivery near the output path
• Output rollers failing to turn correctly
• Worn, cracked, stripped or damaged delivery-drive gears
• Intermittent paper-output problems

These symptoms may also be caused by the fuser, fuser motor, paper-delivery assembly, output rollers, sensors or other printer components. Proper diagnosis is strongly recommended before ordering.

What Is Included?

• One genuine HP paper delivery drive assembly
• OEM part number RM1-8410-000CN
• Installed gears and attached components shown in the product photographs

What Is Not Included?

• Paper delivery or output roller assembly
• Fuser assembly
• Fuser motor
• DC controller or other circuit boards
• Sensors, cables or wire harnesses unless pictured
• Printer, toner cartridge or installation tools
• Any component not shown in the product photographs

Installation Information

Professional installation is strongly recommended. Replacing this internal drive assembly requires partial printer disassembly and careful alignment of the associated gears and paper-delivery components.

Disconnect the printer from power and allow the fuser area to cool completely before beginning service. Installation should be performed by an experienced printer technician familiar with the HP LaserJet Enterprise 600 M601, M602 and M603 platform.

Frequently Asked Questions

Is this a genuine HP part?

Yes. This listing is for a genuine HP OEM paper delivery drive assembly.

Is this part remanufactured?

No. It is considered a new pull because it was removed from a new or unused printer.

Does this include the paper delivery roller assembly?

No. RM1-8410 is the paper delivery drive assembly. The paper delivery/output assembly is a separate component.

Does this include the fuser or fuser motor?

No. The fuser and fuser motor are separate components and are not included.

Will this repair every paper-output jam?

No. Output jams can have several causes. The printer should be properly diagnosed before replacing the drive assembly.
